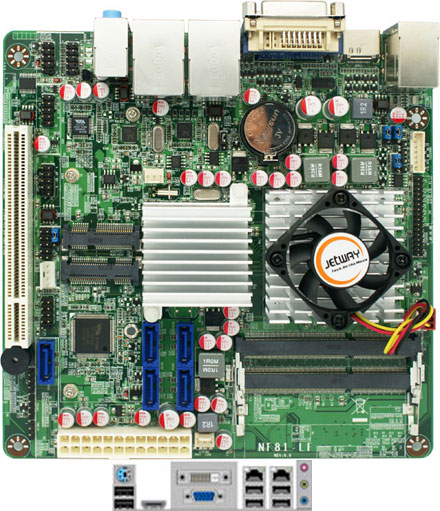

Jetway NF81-T56N-LF (AMD Brazos Zacate T56N 2x 1.6Ghz, DirectX 11, 2x LAN) *new*

PRODUCT IS CURRENTLY NOT AVAILABLE !
Jetway NF81-T56N-LF (AMD Brazos Zacate T56N 2x 1.6Ghz, DirectX 11, 2x LAN) *new*
3D 360° View
  • AMD T56N
  • DirectX 11
  • 2x Gigabit LAN !
  • SATA 6GB/s !

• AMD Brazos eOntario + Hudson E1 Chipset
• Support AMD eOntario (G-Series) Dual core 1.6GHz APU
• Support DirectX 11 3D Graphics Acceleration
• Support 5 * Serial ATA3 (6Gb/s) Devices with RAID 0,1,5,10 & 1 * mSATA
• Support DDR3 800-1066 Single Channel 64-bit, up to 8GB
• Integrated VIA VT1705 HD Audio CODEC with 6-CH
• 1 * 24 bit Dual Channel LVDS header
• Support DVI-D/HDMI Output
• Supports 2 * Realtek RT8111E Gigabit LAN
• Support CPU Smart FAN
• Compliance with ErP standard




Scope of supply:
- Jetway NF81-T56N-LF Ma
[more]

Share

CPU AMD T56N 2x1.6GHz
Graphics AMD
Formfactor ITX (17x17cm)
RAM 2x SO-DDR-III
Audio VIA VT 1705 6-Channel HD Audio
Base
USB 10x USB2.0
Firewire --
IDE/SATA 5x SATA RAID
LAN 2x 10/100/1000
Parallel --
Serial 1x
yes TV-Out
yes PCI
yes Mini-PCI
no IDE
yes DVI
yes 800x480 Resolution
no Passive-Cooling
no PCI-Express
no PCMCIA
yes SATA
no CPU changeable
no Compact Flash

• AMD Brazos eOntario + Hudson E1 Chipset
• Support AMD eOntario (G-Series) Dual core 1.6GHz APU
• Support DirectX 11 3D Graphics Acceleration
• Support 5 * Serial ATA3 (6Gb/s) Devices with RAID 0,1,5,10 & 1 * mSATA
• Support DDR3 800-1066 Single Channel 64-bit, up to 8GB
• Integrated VIA VT1705 HD Audio CODEC with 6-CH
• 1 * 24 bit Dual Channel LVDS header
• Support DVI-D/HDMI Output
• Supports 2 * Realtek RT8111E Gigabit LAN
• Support CPU Smart FAN
• Compliance with ErP standard




Scope of supply:
- Jetway NF81-T56N-LF Mainboard
- Driver CD
- Manual
- COM Cable
- 2x SATA Cable
- I/O Shield

CPU AMD eOntario (G-Series) T56N Dual core 1.6GHz APU
Chipset AMD Brazos eOntario + Hudson E1 Chipset
Memory 2 * SODIMM Sockets for un-buffered Single Channel 64-bit DDR3 800-1066 SDRAM up to 8 GB
Expansion Slot 1 * 32-bit PCI slot
1 * Mini PCI-E
Storage 5 * Serial ATA3 6Gb/s connectors support HDD with RAID 0, 1, 5,10 functions
1 * mSATA socket
Audio VIA VT 1705 6-Channel HD Audio
Ethernet LAN 2 * Realtek RTL8111E PCI-E LAN chip for Gigabit LAN
USB Embedded 10 * USB 2.0/1.1
LVDS Onboard 24-bit dual channel LVDS connector
Real Panel I/O 6 * USB 2.0/1.1 ports
1 * PS2 KB/MS port
2 * RJ-45 ports
1 * Audio I / O port
1 * VGA port
1 * DVI-D port
1 * HDMI port
Internal I/O 2 * USB 2.0/1.1 headers for 4 USB 2.0 ports
CPU / Chassis Fan connectors;
1 * 24-pin ATX Power connector
1 * 24 bit Dual Channel LVDS header
1 * COM Port & 1 * GPIO header
1 * CIR header
BIOS AMI 16MB SPI Flash ROM
Form Factor Mini ITX Form Factor(170mmx170mm)
Funtional ATM, Automation, medical Equipment, Security, Networking, POS, General Application, Gaming Machine, Transportation
Certificate CE, FCC, RoHS
Data sheet Download (PDF)
Data sheet Print view
Review [DE] Download (PDF)
Review [EN] Download (PDF)
AMD G-T56N Benchmark Download
Specifications [EN] Download
Please login for creating product ratings.
Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Customer ratings: 5 von 5 Sternen
Average rating, based on 3 ratings
5 von 5 Sternen from r.k@cool.ms am 20.07.2012 | | See all my comments

Gutes Board, läuft sauber, leise und schnell unter Ubuntu 12.04 als NAS Server, der voll funktiosfähig auch als Media-Server und Media-Player arbeiten werden kann.

Mit dem prop. ATI Treiber laufen auch HD Filme locker über den HDMI Ausgang (mplayer2).

Das einzige Problem was ich bisher noch nicht lösen konnte ist die Suspend to Ram Funktion unter Ubuntu 12.04.

Stromverbrauch mit 3 2TB 3,5" Festplatten + 2.5 SSD liegt bei 39 Watt.

Stromverbrauch im Off-Modus <= 1 Watt

5 von 5 Sternen from Souf am 05.03.2012 |

Produit excellent, une petite carte mère complète et performante, et d?habitude CarTFT et très rapide en livraison.

Excellent product.

Merci

4 von 5 Sternen from korkakak am 26.06.2011 | | See all my comments

So far my opinion in this little mobo is outstanding. I wanted to build a home server, using low consumption components (as well as low price) and this motherboard fit all of my must-have list.
5 SATAIII (It has actually 6 if you can get a micro sata male to (normal) sata adapter) multiple usb and a mini pci-e (one can plug there wifi dongles).

I am using debian (sid) as an OS for the board, and every single device was discovered properly. the only problem in debian was the cpufreq but still easy to bypass ( http://bugs.debian.org/cgi-bin/bugreport.cgi?bug=627811 )
