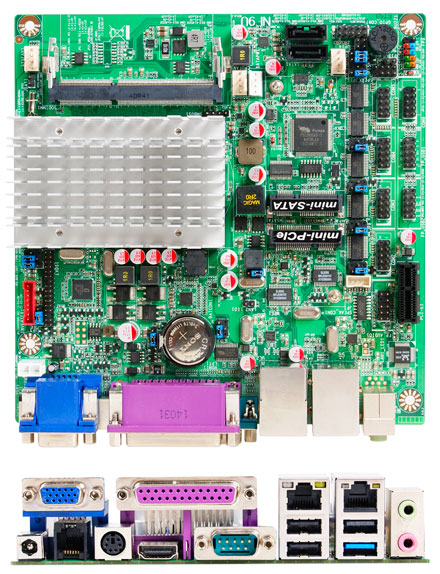

Jetway NF9U-2930 (Intel BayTrail)

Jetway NF9U-2930 (Intel BayTrail)

  • Intel® Baytrail-M/D/I Processor
  • Integrated Intel® Gen7 Intel® Graphics DX 11*, OGL3.0
  • Supports Single Channel DDR3L 1333/1066 MHz,
  • 1 x SO-DIMM, up to 8GB system memory
  • 1 x RJ11 port, 1 x parallel port
  • 1 x VGA, 1 x HDMI, 1 x Dual Channel 24-bit LVDS
  • 1 x USB 3.0, 7 x USB 2.0, 2 x SATAII
  • 1 x mini-PCIe, 1 x PCIe x1 slot
  • Gigabit LAN : 2 x LAN
  • Support CPU Over-Temperature protection
  • Support CPU Over-Current/Under Voltage protection
  • Support DRAM Over-Current/Under Voltage protection
  • Support CPU Smart Fan
  • Support DC Fan


Share

279.00 EUR
incl. 19% VAT, plus shipping
In Stock (1 pcs)
Add to cart
 Form Factor
Dimensions - Mini-ITX ( 170 x 170mm)
 Processor System
CPU - Intel®  Baytrail-M/D/I Processor
Core Number - (By CPU)
Max Speed - (By CPU)
L2 Cache - (By CPU)
Chipset - N/A
BIOS - AMI 64Mb Flash ROM
 Expansion Slot
PCI - 0
Mini-PCIe - 1 (Half size)
mSATA - 1
PCIe - 1
CFast Card Socket - 0
CF Card Socket - 0
 Memory
Technology - 1 * Single Channel DDR3L 1333/1066 MHz SDRAM
Max. - 8GB
Socket - 1 * SO-DIMM
 Graphics
Controller - Intel® HD Graphics
VRAM - Shared Memory
VGA - 1 (Support max resolution 2048X1536)
LVDS - 1 * Onboard 24-bits dual channel connector (resolution 1920x1080)
HDMI - 1 (resolution1920x1080)
DVI-I - No
DisplayPort - No
MultiDisplay - Yes (Dual Display)
 Ethernet
Ethernet - 10/100/1000 Mbps
Controller - GbE LAN: RTL8111G
Connector - 2 * RJ 45
 SATA
Max Data Transfer Rate - 2 * SATAII (3.0Gb/s)
 Rear I/O
VGA - 1
DVI-I - 0
HDMI - 1
DisplayPort - 0
Ethernet - 2
RJ11 - 1
USB - 4 (3 * USB 2.0 + 1 * USB3.0)
Audio - 2 (MIC/Line-out)
Serial - 1 (RS-232/422/485 with 5V/12V selectable header)
Parallel - 1
eSATA - 0
PS2 - 1
DC-input - 1
 Internal Connector
USB - 4 ( 2 * USB 2.0 via 9 pin header )
PS2 - 0
LVDS / inverter - 1
VGA - 0
Serial - 5 (5 x RS-232 with 5V/12V selectable header)
SATA - 2 * SATAII (3.0Gb/s)
mPCIe - 1
Parallel - 0
mSATA - 1
CIR - 0
GPIO 8-bit - 4in / 4 out
Chassis intrusion - 1 (via 2pin header)
Audio Header - 1
 Watchdog Timer
Output - From Super I/O to drag RESETCON#
Interval - 256 segments, 0,1,2…255sec/min
 Power Requirements
Input PWR - 9~24V DC-In
Power On AT/ATX Supported
- AT : Directly PWR on as Power input ready
- ATX: Press Button to PWR on after Power input ready
Certifications
Certifications - CE, FCC, RoHS, REACH
 Environment
Temperature - Operating: 0℃– 60℃
- Storage: -20℃– 85℃
