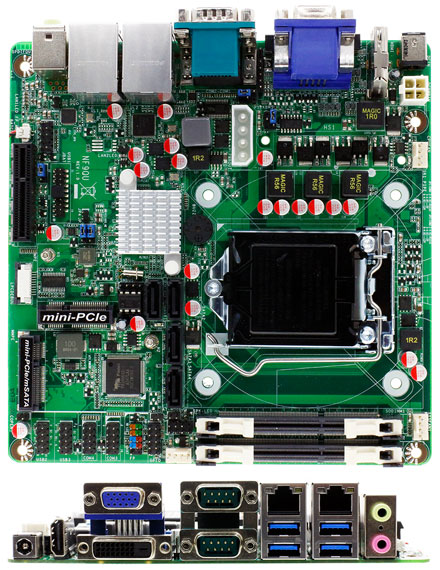

Jetway NF9QU-Q87 (Intel Q87)

Jetway NF9QU-Q87 (Intel Q87)

  • Intel® Q87 Express Chipset
  • Supports Intel LGA 1150 Socket Core™ i3, i5, i7 & Pentium Processors
  • 2 * Dual Channel DDR3 1600/1333 up to 16GB
  • TPM supported (Option)
  • Support Intel i211AT & i217LM GbE LAN
  • Intel Active Management Technology ( iAMT 9.0)
  • Support PCIe x4 slot
  • 4-ports SATA III 6Gb/s support RAID 0, 1, 5, 10
  • HDMI/ DVI-D/VGA Video Outputs
  • Built-in Watchdog Timer Technology
  • +9~24V Wide range DC-in PWR jack
  • Mini-ITX Form Factor (170mm * 170mm)


Share

289.00 EUR
incl. 19% VAT, plus shipping
Available in 3-7 days
Add to cart
 Form Factor
Dimensions - Mini-ITX (170 * 170mm)
 Processor System
CPU - Intel LGA 1150 Socket Core i7/i5/i3/Pentium Processor
Core Number - (by CPU)
Max Speed - (by CPU)
L2 Cache - (by CPU)
Chipset - Intel Q87 Express chipset
BIOS - AMI 64Mb Flash ROM
 Expansion Slot
PCI - 0
Mini-PCIe - 1 (half size)
mSATA - 1 (shared with mPCIe)
PCIe - 1 (x4)
CFast Card Socket - 0
CF Card Socket - 0
 Memory
Technology - 2 * Dual CH DDR3 1600/1333MHz
Max. - 16GB
Socket - 2 * SO-DIMM
 Graphics
Controller - (by CPU)
VRAM - Shared Memory
VGA - 1
LVDS - 0
HDMI - 1
DVI-D - 1
DisplayPort - 0
MultiDisplay - Yes (Triple Displays)
 Ethernet
Ethernet - 10/100/1000 Mbps
Controller - GbE LAN: Intel i211AT & i217LM
Connector - 2 * RJ 45
 SATA
Max Data Transfer Rate - 4 * SATAIII (6.0Gb/s)
 Rear I/O
VGA - 1
DVI-D - 1
HDMI - 1
DisplayPort - 0
Ethernet - 2
USB - 4 (4 * USB 3.0)
Audio - 2 (MIC / Line-out)
Serial - 2 (RS-232/422/485 with 5V/12V selectable header)
eSATA - 0
PS2 - 0
DC-input - 1
 Internal Connector
USB - 6 ( 4 * USB 2.0 + 2 * USB 3.0)
PS2 - 1
LVDS / inverter - 0
VGA - 0
Serial - 2 (2 * RS-232 with 5V/12V selectable header)
SATA - 4 * SATAIII (6.0Gb/s)
mPCIe - 1 (half size)
Parallel - 0
mSATA - 1 (shared with mPCIe)
CIR - 0
GPIO 8-bit - 4in / 4 out
Chassis intrusion - 1
Audio Header - 1
 Watchdog Timer
Output - From Super I/O to drag RESETCON#
Interval - 256 segments, 0,1,2…255sec/min
 Power Requirements
Input PWR - +9~24V DC-in (4-pin PWR Con)
Power On AT/ATX Supported
- AT : Directly PWR on as Power input ready
- ATX: Press Button to PWR on after Power input ready
Certifications
Certifications - CE, FCC, RoHS, REACH
 Environment
Temperature - Operating: 0°C – 60°C
- Storage: -20°C – 85°C
