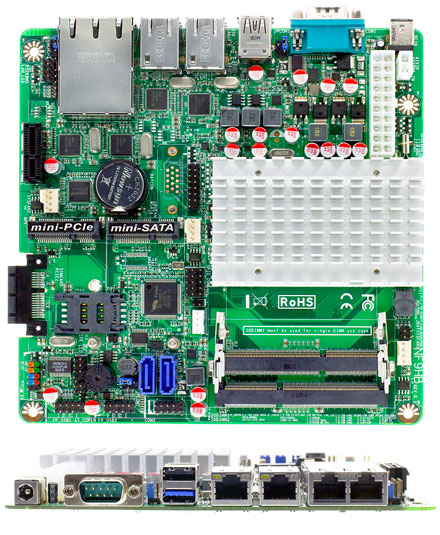

Form Factor
|
Dimensions
|
- Mini-ITX (6.7-in x 6.7-in, 170 x 170mm)
|
Processor System
|
CPU
|
- Intel® Baytrail-M Celeron N2930 Processor
- Supports Hyper-Threading Technology
|
Core Number
|
- (By CPU)
|
Max Speed
|
- (By CPU)
|
L2 Cache
|
- (By CPU)
|
Chipset
|
- N/A
|
BIOS
|
- AMI 64Mb Flash ROM
|
Expansion Slot
|
Mini-PCIe
|
- 1 (full size)
|
mSATA
|
- 1 share with SATA2 (full size)
|
PCIe
|
- 2 (x1)
|
SIM
|
- 1
|
Memory
|
Technology
|
- Single Channel DDR3L 1333 MHz SDRAM (By CPU)
|
Max.
|
- 8GB
|
Socket
|
- 2 x SO-DIMM
|
Graphics
|
Controller
|
- Intel® Gen7 Intel® Graphics DX 11*, OGL3.0
|
VRAM
|
- Shared Memory
|
VGA
|
- 1 ( Internal )
|
LVDS
|
- 0
|
HDMI
|
- 0
|
MultiDisplay
|
- No
|
Ethernet
|
Ethernet
|
- 10/100/1000 Mbps
|
Controller
|
- GbE LAN: Intel I211AT
|
Connector
|
- 4 x RJ 45
|
SATA
|
Max Data Transfer Rate
|
- 2 x SATAII (3.0Gb/s) (1 share with mSATA)
|
Rear I/O
|
VGA
|
- 0
|
HDMI
|
- 0
|
Ethernet
|
- 4
|
USB
|
- 2 (1 x USB 3.0, 1 x USB 2.0)
|
Audio
|
- 0
|
Serial
|
- 1 x RS-232
|
PS2
|
- 0
|
DC-input
|
- 1 x 12V DC-in JACK
|
Internal Connector
|
USB
|
- 4 (4 x USB 2.0)
|
LVDS / inverter
|
- 0
|
Serial
|
- 2 (2 x RS-232 with 5V/12V selectable header)
|
SATA
|
- 2
|
mPCIe
|
- 1
|
mSATA
|
- 1
|
Chassis intrusion
|
- 1 (via 12pin header)
|
PS2
|
- 1
|
Audio Header
|
- 0
|
Watchdog Timer
|
Output
|
- From Super I/O to drag RESETCON#
|
Interval
|
- 256 segments, 0,1,2…255sec/min
|
Power Requirements
|
Input PWR
|
- 12V DC-In (2-pin PWR Con)
|
Power On
|
AT/ATX Supported
- AT : Directly PWR on as Power input ready
- ATX: Press Button to PWR on after Power input ready
|
Certifications
|
Certifications
|
- CE, FCC, RoHS, REACH
|
Environment
|
Temperature
|
- Operating: 0℃– 60℃
|
- Storage: -20℃– 85℃
|
Prima board, ideal als Router dank 4 GbE ports und trotzdem kompakten Abmessungen, passt mit selbstentworfenem Kunstoffgehäuse perfekt in ein kleines 10 Zoll rack.
