USB GPS Mouse (Sony GA4 chipset) incl. MarcoPolo Reiseplaner (ger) 2006/2007

PRODUCT IS CURRENTLY NOT AVAILABLE !

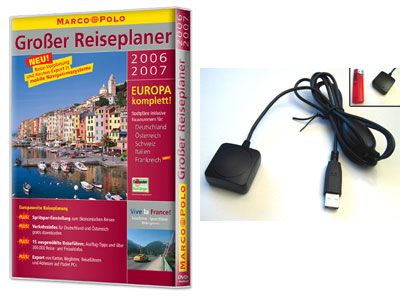

USB GPS Mouse (Sony GA4 chipset) incl. MarcoPolo Reiseplaner (ger) 2006/2007

This gps mouse has an integrated antenna.
The current supply takes place over the USB-connecton of the computer
You only have to install a GPS-capable software
for using this product to detect your position

This GPS-Receiver has the following technical details :


The GPS-Receiver is compatible to the following operating systems : - Win 98/Me/W2K/XP/MAC/Linux




Share

Specifications
Receiver
Tracking up to 12 satellites L1, 1575.42 MHz, C/A code
Accuracy
Position: 2DRMS approximately 2m, WAAS support
Velocity: 0.1 m/s without SA imposed
Time: ±1μs
Acquisition Time
Cold Start: 45s (Average)
Warm Start: 35s (Average)
Hot Start: 2s (Minimum)
Sensitivity
Acquisition: -139dBm
Tracking: -152dBm
Dynamics Max Altitude: 18000m
Max Velocity: 500m/s
Max Acceleration: ±4g
Navigation Update Rate Once per second
Serial Port TTL, RS232
Baud Rate 4800 bps (Optional 9600,19300,38400 bps)
Output Message NMEA0283 V2.2 GGA, GSV, GSA, RMC (optional VTG, GLL)
Datum WGS 84
Power Supply DC 5V ±5%
Power Consumption Typical 80mA @5V
LED Indicator Power On/Off
Navigation
Operating Temperature -40° ~ +85° C
Storage Temperature -40° ~ +100° C
Humidity 5%~95%
Antenna Type Built-in patch antenna
Data sheet Download (PDF)
Data sheet Print view
