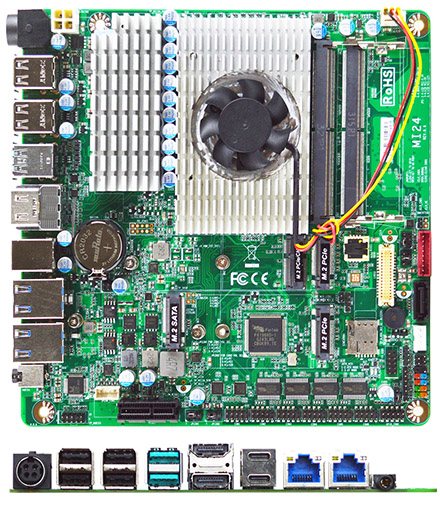

The JETWAY MI24 Series adopts the Intel® Raptor Lake-P i5-1335UE/i5-1335U SoC processor support 15W TDPs SKU. MI24 Series equipped with the latest two DDR5 5200MHz SO-DIMM up to 64GB, one M.2 M-key (2242/2280) support NVMe, one M.2 M-key (2242), one SATAIII for storage choices. For versatile expansions, the MI24 Series provides one M.2 E-key (2230) support CNVi for WiFi, one M.2 B-key (3042/3052) for 4G/5G module, and one PCIe Gen.3 x1 slot. MI24 Series also has seven USB2.0, two USB3.2 (Gen.2) up to 10Gbps, two USB3.2 (Gen.2) Type-C support ALT mode for multiple hub expansion application with four RS232 and two RS232/422/485 so customers can connect different peripherals to meet their needs. MI24 Series also has two HDMI2.0b and one internal LVDS (co-lay eDP) to support triple displays. MI24 Series designs provide rich features which can be used for Industrial Automation and KIOSK needs.

Intel® 13th Raptor Lake-P i5-1335UE/i5-1355U SoC Processor
2* DDR5 5200MHz SO-DIMM up to 64GB
2* M.2 M-key, 1* M.2 E-key for WiFi, 1* M.2 B-key for 4G/5G module, 1* SIM card, 1* PCIe Gen.3 x1
2* HDMI, 1* LVDS (co-lay eDP)
4* RS232, 2* RS232/422/485, 1* SATAIII, 2* USB3.2 (Gen.2), 2* USB3.2 (Gen.2) Type-C support DP ALT mode and PD 5V/3A, 7* USB2.0
Onboard TPM2.0 (option)
Support JetBIOS back up tool
12~24V DC-in

Model	– MI24-133E0 (Default: i5-1335UE) – MI24-133E2 (i5-1335UE, onboard TPM2.0) – MI24-13350 (i5-1335U) – MI24-13352 (i5-1335U, onboard TPM2.0)
Form Factor	– Slim ITX (170 * 170mm)
Processor System	– Intel® 13th Raptor Lake-P i5-1335UE/i5-1335U SoC Processor – AMI Flash ROM BIOS * Support recover crashed BIOS data tool by a USB flash pen driver: Using JetBIOS SW back up tool with any external USB ports
Memory	– 2* DDR5 5200MHz Dual Channel SO-DIMM up to 64GB
Storage	– 1* SATAIII (6 Gb/s) – 1* M.2 M-key (2242/2280, PCIe Gen.4×4 interface) support NVMe – 1* M.2 M-key (2242, SATA interface)
Expansion	– 1* M.2 E-key (2230, USB2.0/PCIe x1 interface) support CNVi for WiFi – 1* M.2 B-key (3042/3052, USB3.1/USB2.0/PCIe x1 interface) for 4G/5G module – 1* PCIe Gen.3 x1
Ethernet	– 1* Intel i225-LM 2.5GbE – 1* Intel i225-V 2.5GbE
Graphics	– Intel® Iris® Xe Graphics, shared memory – 2* HDMI 2.0b (Max Resolution: 4096×2304@60Hz) – 1* 24 Bit Dual Channel LVDS/eDP (Max Resolution: 1920 x 1200@60Hz) – Support Triple Displays
Audio	– HD audio: Realtek ALC888S + 3W Amplifier
Watchdog Timer	– From Super I/O to drag RESETCON# – 256 segments (10sec ~ 255min)
Internal I/O	– 3* USB2.0 – 4* RS232 – 2* RS232/422/485 – 1* LVDS (eDP option) – 1* SATAIII – 1* Speak connector – 1* Audio Header – 1* SIM Card Slot – 1* PS/2 – 1* SMBUS – 1* 8-bit GPIO – 1* Chassis intrusion – 1* AT mode
External I/O	– 2* USB3.2 (Gen.2) – 2* USB3.2 (Gen.2) Type-C support DP ALT mode and PD 5V/3A – 4* USB2.0 – 2* HDMI – 2* RJ45 – 1* Audio Jack (Line-out/MIC combo) – 12~24V 4-pin DC-in PWR jack
Power	12~24V DC-in, AT/ATX Supported – AT: Directly PWR on as Power input ready – ATX: Press Button to PWR on after Power input ready
Compliance	– CE, FCC, LVD, RoHS, REACH
Temperature	– Operating Temperature: 0 ~ 60° C – Storage Temperature: -20 ~ 85° C – Humidity: 10% ~ 90% RH @40°C (non-condensing)
OS Support	– Windows 10 / 11, Linux
