Jetway F35-ASL1-74330010 3,5" SBC (Intel Atom Processor SoC, 2x LAN, 4k USB-C DP) [12-28V Power Input]

PRODUCT IS CURRENTLY NOT AVAILABLE !

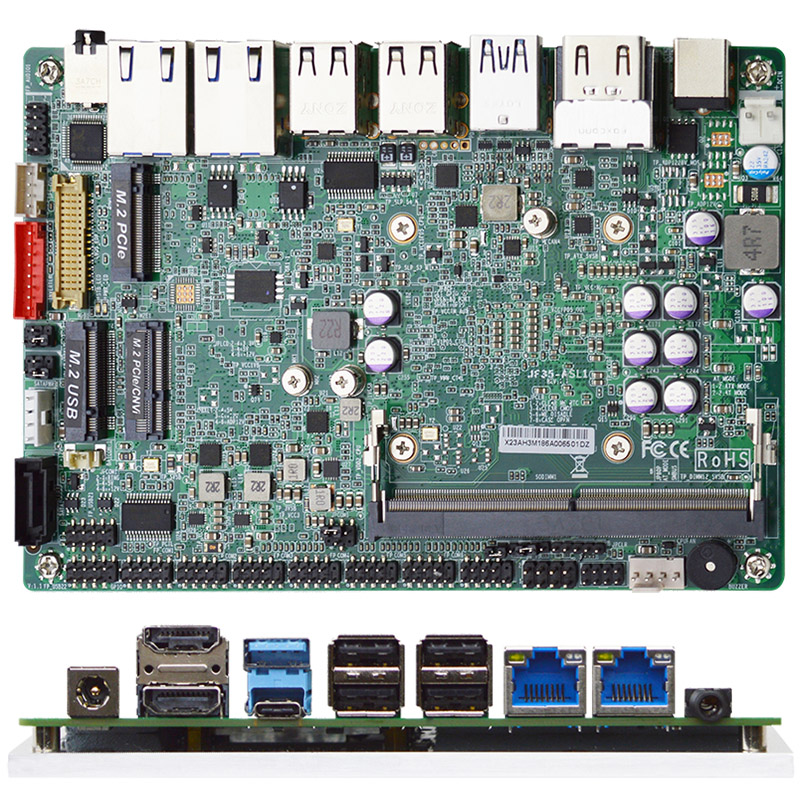

Jetway F35-ASL1-74330010 3,5" SBC (Intel Atom Processor SoC, 2x LAN, 4k USB-C DP) <b>[12-28V Power Input]</b>
  • Intel ATOM SoC !
  • Tripple Display !
  • 12-28V Input !
  • 3,5" SBC !

  • Powered by Intel® Atom X-series Processor(Formerly Amston Lake, TDP 9W)
  • High-Performance Memory: 1 x DDR5 4800MHz SO-DIMM, up to 32GB
  • Triple Display support: 2 x 4K HDMI, 1 x 4K USB Type-C DP, and 1 x LVDS/eDP output
  • Dual 2.5GE LAN for high-speed networking
  • Flexible storage and expansion option: 1 x SATA III, 1 x M.2 M-key, 1 x M.2 B-key, 1 x M.2 E-key
  • Comprehensive I/O: 1 x USB 3.2 Gen 2, 1 x USB Type-C (ALT), 8 x USB 2.0, 6 x COM
  • Advanced Power Protection: Supports RVP, OCP, and OVP
  • Wide Power Input: DC-in 12~28V for greater power flexibility


Share

RAM :

SSD (M.2 NVME):

SSD (2.5"):

OS:

Build/Install:

MB FORM FACTOR3.5"
CPUOnboard Intel Atom® x7433RE Processor (Formerly Amston Lake, TDP 9W)
For additional compatible CPUs, please contact regional sales
CHIPSETIntel® SoC
MEMORY1 x DDR5 4800MHz, Single Channel SO-DIMM, up to 32GB
BIOSUEFI
WAKE ON LANYes
WATCHDOG TIMER255 Levels
SECURITYTPM2.0 (dTPM, Optional)
RTC BATTERYLithium Battery
DIMENSION (W X D)148.0 (W) x 102.0 (D) mm (5.8″ x 4.0″)
OS SUPPORTWindows® 11 (64bit)
Windows® 10 (64bit)
Linux
POWER
POWER REQUIREMENTDC-in 12~28V
POWER ON MODEAT / ATX (Default) Mode
CONNECTORInternal 2-pin Header
DISPLAY
GPUIntel® UHD Graphics
LVDS1 x 24-bit Dual Channel LVDS (Max. Resolution: 1920 x 1080 @60Hz / Co-Lay eDP)
Type-C DP1 x Type-C DP1.4a (Max Resolution: 4096 x 2304@60Hz)
HDMI1 x HDMI 2.0b (Max Resolution: 4096 x 2160@60Hz), 1 x HDMI 1.4 (Max Resolution: 4096 x 2160@30Hz)
MULTIPLE DISPLAYSupport 3 Displays
AUDIO
CODECRealtek Audio Codec
COMBO1 x Combo Audio Jack for Line-Out / Mic-In
AMPLIFIER3W
LAN
ETHERNET2 x RJ45 for Intel® I226-V 2.5GbE
USB PORT
USBInternal Header for 4 x USB 2.0
4 x USB 2.0
1 x USB 3.2 Gen 2x1 Type-C (10Gbps) Support DP ALT Mode
1 x USB 3.2 Gen 2x1 (10Gbps, Formerly USB 3.1 Gen 2)
SERIAL PORT
COMInternal Header for 1 x RS-232/422/485
Internal Header for 5 x RS-232
INTERNAL I/O
GPIO8-Bit
SMBUSYes
FAN1 x 4-pin Connector for System Fan (PWM Mode)
FRONT PANELHDD Active LED
Power LED
Power On/Off
Reset
ADDITIONAL1 x Chassis intrusion
1 x AT/ATX Mode Selection
STORAGE
SATA1 x SATA III
1 x SATA Power Connector
eMMCOnboard 64GB eMMC 5.1 (optional)
EXPANSION
M.21 x B-Key 3042/3052 (USB 3.2/USB 2.0) for 4G/5G Module
1 x E-Key 2230 (USB 2.0/PCIe 3.0 x1)
1 x M-Key 2280 (PCIe 3.0 x2) Support NVMe
SIM1 x Nano SIM Card Slot
ENVIRONMENT & CERTIFICATION
SHOCK15G, 11ms duration
VIBRATION1 Grms/ 5~ 500Hz/ Operation
OPERATING TEMPERATURE-20°C ~ 60°C (-4°F ~ 140°F)
STORAGE TEMPERATURE-20°C ~ 85°C (-4°F ~ 185°F)
OPERATING HUMIDITY10 ~ 90% relative humidity, non-condensing
CERTIFICATIONCE/FCC Class A
